ЦАПы с R-2R лестницей в NOS небо

NOS = non-oversampling, без оверсемплтинга (без фильтров перед превращением цифры в вольтаж).
R-2R — это способ PCM-конверсии в аналог, используется лестница резисторов. R-2R очень редкие ЦАПЫ. Сейчас практически все ЦАПы это дельта-сигма и, сильно реже, мультибиты.

Не знаю, как вы, но я отчетливо вижу тренд на появление все большего числа R-2R ЦАПов. Про MSB DAC и их OEM-модули даже и говорить не будем.

Новые Metrum Musette, Metrum Pavane, Metrum EVO все идут с проприетарными модулями Transient.

Год назад засветились итальянцы Aqua La Scala MkII D/A Converter
4 чипа PCM1704-K

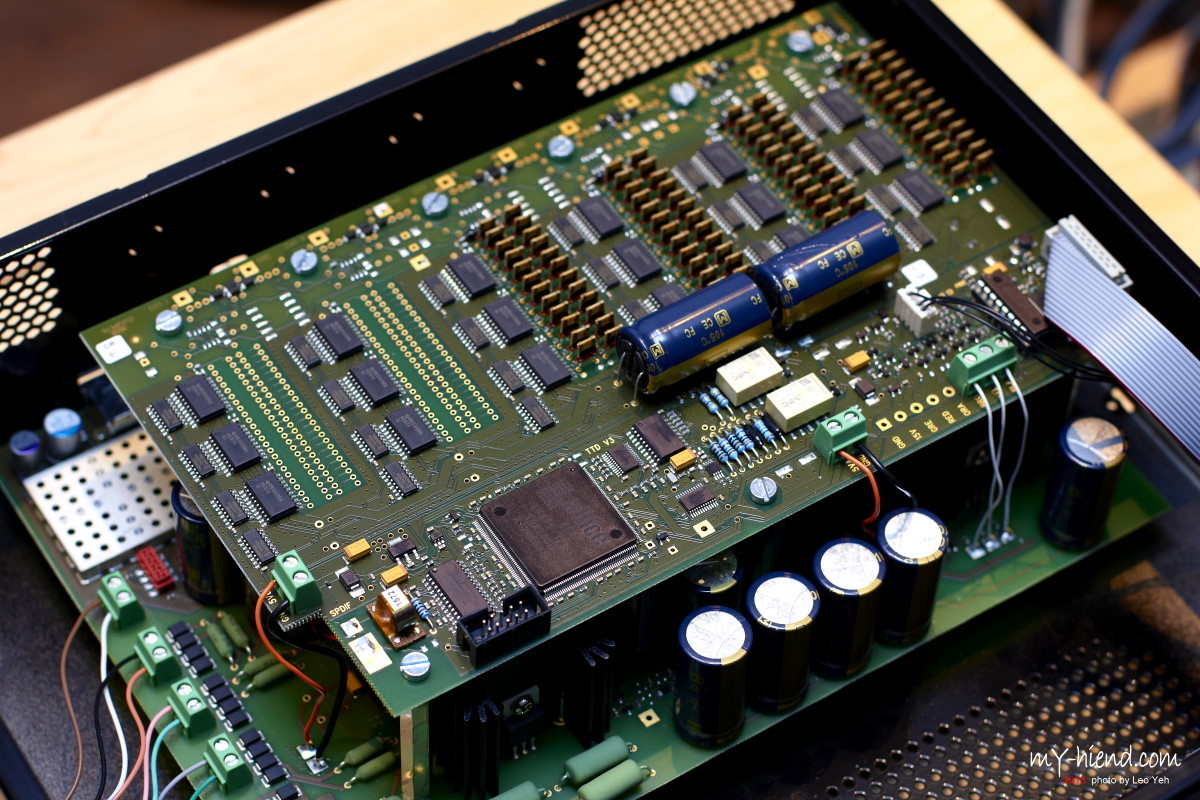

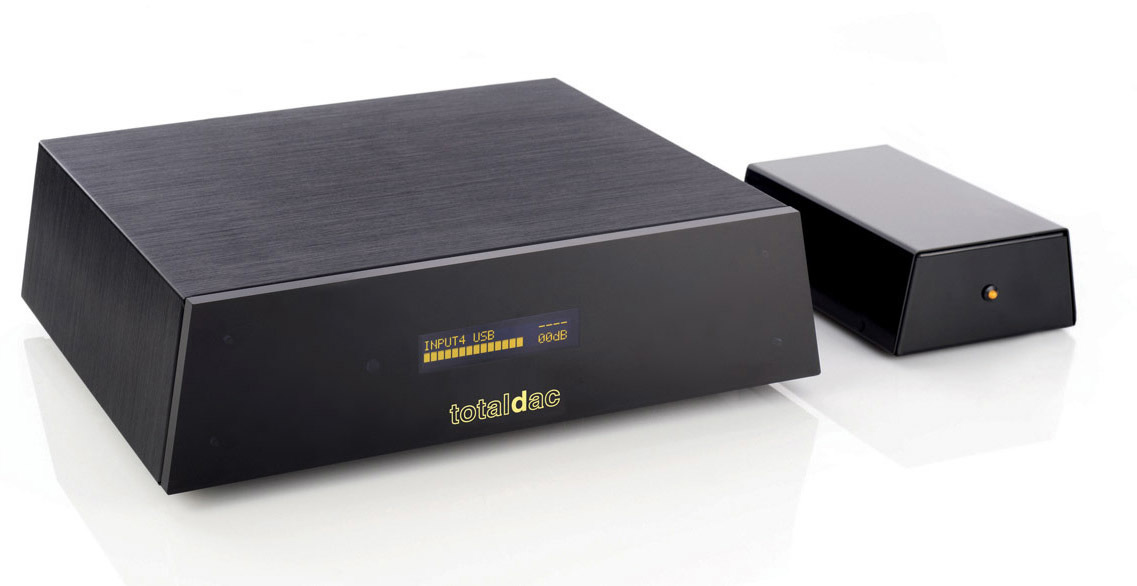

Француз TotalDAC D1
6 лестниц на канал (600 резисторов vishay)

Секретный R-2R Audio Note DAC
Питер Квортруп рассказал, что они проектируют и уже есть прототип. По слухам, прототип играл на выставке в Мюнхене и всех выиграл.

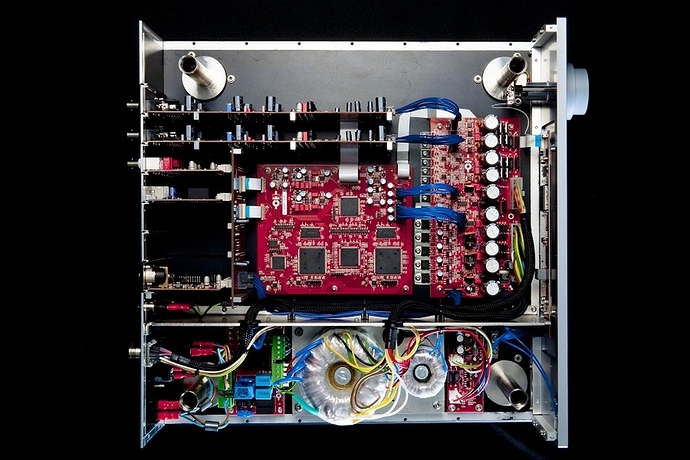

CH Precision C1
Швейцарский ЦАП на 8 x PCM1704

В чем прелесть R-2R цапов — это временная точность, а это значит предельная быстрота и точное интонирование в музыке. Все как мы любим. Часто в укор таким ЦАПам ставят слабую обработку концов диапазонов — баса и верха, но за дорогими R-2R цапами это не водится.

Было бы интересно послушать, конечно. Интересно, что скажет начальник транспортного цеха :grin:

R2R ЦАПики


47 Laboratory – Japan
Model 4733 Midnight Blue | TDA1543 | USB, RCA | DAC/Preamp/HPA. | $ 2,000
Model 4705 Gemini | TDA1543 | RCA | Dual-mono DAC. Filterless. Separate psu ($2250) required | $ 4,500

Abbas Esoteric Audio – Ukraine
DAC 0.1 | TDA1543 | RCA | NOS, tube stage | $ 378
DAC 0.1 SE | TDA1543 | RCA | NOS, tube stage | $ 698
DAC 1.0 SE | PCM56P-K | RCA | NOS, OTL tube stage, tube clock | $ 1,448
DAC 1.0 SE 6080 | PCM56P-K | RCA | NOS, OTL tube stage, tube clock, HP out, adjustable LO | $ 2,198
DAC 2.0 | TDA1541A | RCA | NOS, SE Class A stage | $ 798
DAC 2.0 SE | TDA1541R1 | RCA (x2) | NOS, OTL tube stage, 6V RMS | $ 2,448
DAC 2.1 SE | TDA1541R1 | RCA | NOS, tube stage, | $ 1,948
DAC 3.0 SE | TDA1541AS1 | RCA (x2) | NOS, tube stage, tube clock | $ ?
DAC 3.1 | ? | ? | ? | $ unknown
DAC 4,0 | PCM58 | Coax (x2) | RCA (x2) | ? | $ 4,900
Note from Abbas on 18 Jan 2021: DAC portfolio will going forward be limited to six DACs - TDA1540, TDA1541 (two versions), TDA1543, PCM58, PCM63 - which will only be available in Special Editions

Acoustic Plan – Germany
DigiMaster | PCM1704U-K | USB, BNC, I2S | Analogue filtering. Tube output stage | $ 3,850

Acuhorn – Poland
R2R | R2€ | RCA, Toslink, I2S | DAC/Streamer. Soekris dam1121, FPGA Spartan 6. RPi/MoOde. Direct/buffered output | £3600
R2R H | R2R | USB, Toslink, I2S | DAC/HPA. Soekris dam1121 0,02%, FPGA Spartan 6. Class-A SS HPA. Direct/ buffered output | €4000
R2R TS | R2R | USB, RCA, Toslink | DAC/PRE. Soekris dam1121 0,02%, FPGA Spartan 6. Stepped attenuator VC. Tube output stage | €4000
R2R XD | R2R | USB, RCA, Toslink | Fully balanced DAC. Soekris dam1121 0,02%, FPGA Spartan 6. Direct SE/BAL output | €4600

AKS Audio – Switzerland
DAC1702N | PCM1702-J | USB, RCA (x2), Toslink (x2) | $ 1,500

ALEKS Audio – Russia
DAC Luxor Solist-AD 1865| AD1865 | USB, RCA | Tube output stage | $ 1,595

ANK Audiokits – USA
DAC 2.1 | AD1865N | RCA, USB optional | NOS. Flterless. Tube output stage | $ 1,475 (STD). $ 1,700 (SE)
DAC 4.1 LE Triple C-Core | AD1865N | RCA, USB optional | NOS. Filterless. Transformer coupled output stage | $ 2,650 (Kit). $ 3,500 (Assembled)
DAC 5.1 SE | AD1865NK | RCA, AES/EBU, USB optional | | NOS. Filterless. Transformer coupled output stage | $ 4,900 (Kit). $ 6,000 (SE Professional, Asssembled)

Aqua - Acoustic Quality – Italy
La Voce S3 Discrete DAC | R2R | USB, BNC, I2S, optional (AES, RCA, Toslink, AT&T) | FPGA, no digital filtering. Upgradeable modular design. Fully discrete analog stage. RCA/XLR outputs | € 3,870
La Scala MKII Optologic DAC | R2R | USB, RCA, BNC, AES, I2S, optional (AT&T) | FPGA, no digital filtering. Upgradeable modular design. Tube hybrid output stage. RCA/XLR outputs | € 6,860
Formula xHD Optologic DAC Rev.2 | R2R | USB, RCA, BNC, AES, I2S, modular (AES, Toslink, AT&T) | FPGA, no digital filtering. Upgradeable modular design. Transformer-based true balanced output stage | € 13,475

Aries Cerat – Cyprus
Heléne DAC | AD1865N-K | USB, RCA, BNC, AES | NOS, 8 IC/ch, tube output stage, Bal Out | € 12,800
Kassandra 2 REF | AD1865N-K | USB, RCA x2, Toslink | 16 IC/ch, tube output stage, VC + Bal Out optional | € 22,000
Kassandra 2 SIG | AD1865N-K I USB, RCA x2, Toslink | 20 IC/ch, tube output stage, separate psu, VC + Bal Out optional | € 45,000
Kassandra 2 SIG LE | AD1865N-K | USB, RCA x2, Toslink | 24 IC/ch, tube output stage, separate psu, VC + Bal Out optional | € 82,000
Homerus DAC | details yet tba | € 169,000

Arkhipov’s Laboratory – Russia
DAC63 | PCM63P-K | RCA, Toslink, optional (USB, Ethernet) | NOS, tube-amorphous transformer output stage, separate PS optional | $1000 (S/PDIF only); $1300-1600 (with USB or NMR renderer); $500 (separate PS)
DAC1541 | TDA1541A | RCA, Toslink, optional (USB) | NOS, tube-amorphous transformer output stage, separate PS optional | $900 (S/PDIF); $1200-1300 (with USB); $500 (separate PS)
DAC1702 | PCM1702 | like DAC1541
DAC1861 | AD1861 | like DAC1541
DAC56 | PCM56 | RCA | NOS | $ 600

Audial – Serbia
S4 | TDA1541A | USB, BNC | NOS. RCA/XLR outputs | € 1,950
Model S MkIII | TDA1541A | BNC, I2S/SIM | NOS. RCA/XLR outputs | € 1,850

Audio ALT – Russia
ALT N4 | PCM53? | RCA | NOS DAC/HPA | Price unknown
ALT N4 SE | PCM53? | USB, RCA | Speaker/Headphone NOS DAC/AMP | Price unknown

Audio-gd – China
R2R 11 | R2R | USB, RCA, Toslink | NOS, DAC/PRE/HPA | $ 350
R2R 28 | R2R | USB, RCA, Toslink, I2S, AES | Balanced DAC/PRE/HPA | $ 1,200
R2R 27 | R2R | USB, RCA, Toslink, I2S, AES | Balanced DAC/PRE/HPA | $ 2.090
R-1 | R2R | USB, RCA, BNC, Toslink, I2S, AES | Balanced DAC | $ 890
R-8 | R2R | USB, RCA, Toslink, I2S, AES | Balanced DAC | $ 1,680
R-7 | R2R | USB, RCA, BNC, Toslink, I2S, AES | Balanced DAC | $ 2,750
R-8HE | R2R | USB, RCA, Toslink, I2S, AES | Balanced DAC. Regenerative PS | $ 2,600
R-7HE | R2R | USB, RCA, BNC, Toslink, I2S, AES | Balanced DAC. Regenerativ PS | $ 3,680

Audio Mirror – USA
Tubadour III | AD1865N-K | USB, RCA, Toslink, AES, I2S optional | NOS. Tube output stage | $1500
Tubadour III SE | AD1865N-K | USB, RCA, Toslink, AES, I2S | NOS. Tube output stage | Balanced output optional | $2500

Audio Note – UK
DAC 0.1x | TDA1543 | USB, RCA | NOS. Filterless. Tube output stage | $ ?
DAC 1.1x/II | AD1865N | RCA, AES | NOS. No digital filtering. Tube output stage. STD/SIG versions | $ ?
DAC 2.1x | AD1865N | RCA, AES | NOS. No digital filtering. Tube output stage. STD/SIG/BAL versions | $ ?
DAC 3.1x/II Balanced | AD1865N | NOS. No digital filtering. Transformer coupled tube output stage (RCA+XLR). STD/SIG/BAL versions | $ ?
DAC 4.1x Balanced | AD1865N | NOS. No digital filtering. Transformer coupled tube output stage (RCA+XLR). BAL (1.5V)/SIG (3.2V) versions | $ ?
DAC 5 | AD1865N | NOS. No digital filtering. Transformer coupled tube output stage (RCA+XLR). SPC/SIG versions | $ ?
Fitth Element/Force | AD1865N | NOS. No digital filtering. Separate PSU. Tube input stage. Transformer coupled tube output stage (RCA+XLR). SPC/SIG versions | $ ?

Audio-Optimum – Germany
NOS-DAC | TDA1543 | RCA | NOS | € 2,490
NOS-DAC 2 | TDA1543 | (3x) RCA or XLR | DAC/PRE/HPA | € 3,790

BorderPatrol – USA
DAC S | DA1543 | USB and/or RCA | NOS | $ 1,075-1,575
DAC SE-i | TDA1543 | USB and/or RCA | NOS. Jupiter caps, improved PS | $ 1,425-1,925

CH Precision – Switzerland
C1 D/A Controller | PCM1704 | Basic (RCA, Toslink, AES/EBU, CH-link), Optional (USB, LAN, Analog, Clock) | Modular input boards, ADC/DAC, Streamer, PRE/VC, Fully Balanced, DSP, ext PSU/Clock optional | C1 D/A CHF 27,800 | X1 PSU CHF 15,100 | T1 Clock CHF 22,100
C1 Mono D/A Controller | PCM1704 | Inputs as above | 3-box system, ext PSU (x3) optional | CHF 63,500

Computer Audio Design – UK
CAD 1543 MKII DAC | TDA1543/N2 | USB | NOS. Filterless | £ 7,250

Concert Fidelity – Japan
DAC-040NX | Philips 16-bit | USB, RCA, BNC | NOS, D/D & D/A section customizable, tube buffer stage | $ 10,000

Denafrips – China
Ares II | R2R | USB, RCA x2, Toslink x2 | NOS/OS, 24bit R2R+6bit DSD, RCA+XLR out | $ 775
Pontus | R2R | USB, RCA, BNC, Toslink, AES/EBU, I2S | NOS/OS, 24bit R2R+6bit DSD, fully balancec | $ 1,725
Venus II | R2R | USB, RCA, BNC, Toslink, AES/EBU, I2S | NOS/OS, 26bit R2R+6bit DSD, fully balanced | $ 3,000
Terminator | R2R | USB, RCA, BNC, Toslink, AES/EBU x2, I2S x3 | NOS/OS, 26bit R2R+6bit DSD, fully balanced | $ 4,500
Terminator-Plus | R2R | USB, RCA, Toslink, AES/EBU x2, I2S x3 | NOS/OS, 26bit R2R+6bit DSD, fully balanced | $ 6,550

DIXO Audio – Israel
USB portable DAC | LTC2753 | USB | DAC/HPA | € 200
USB/SPDIF portable DAC | LTC2753 | USB, RCA (or Toslink) | DAC/HPA | € 400
Table top DAC | LTC2752/LTC2758 | USB, RCA, Toslink | DAC/PRE/HPA, SPDIF out, XLR out | € 1,200/2,000 (16bit/18bit)

Eleven Audio XIAUDIO – Taiwan
SagraDAC | R2R | USB, RCA1 (2x), BNC, Toslink, AES, I2S | Soekris DAM1941 (?), SE/BAL output | $ 3,400

Etalon Sound – Russia
Dream DAC | R2R | USB, RCA, Toslink (x2), AES/EBU | Fully balanced. HP out. Proprietrary ‘Synchronous VC’ | € 10,000
DAC Mini | R2R | USB, RCA, Toslink (x2), AES/EBU | Fully balanced. Transformer-coupled HP out. Proprietrary ‘Synchronous VC’. Separate PSU | € 10,000

HiFiMAN – China
R2R2000 | PCM1704K | USB, BT | FPGA. MicroSD. BAL HP out | $ 2,500
R2R2000 Red | PCM1702 | USB, BT | FPGA. MicroSD. BAL HP out | $ 900

HOLO Audio – China
May DAC | R2R | USB, RCA, BNC, AES, Toslink, I2S (x2) | Dual Mono. NOS/OS/OS-PCM/OS-DSD | $ 3,800 (L1), $4,300 (L2), $ 5,000 (KTE)
Spring 2 DAC | R2R | USB, RCA, BNC, AES, Toslink, I2S | NOS/OS, DSD | $ 1,700 (L1), $2,000 (L2), $ 2,700 (KTE)
Cyan | R2R | USB, RCA, AES, Toslink, I2S | Fully balanced | $ 1,100 (DSD), $ 1,300 (PCM, DAC/HPA), $ 1,450 (PCM+DSD, DAC/HPA)

Junilabs – France
Jundac Two | PCM 1704 | BNC, RCA (x3) | External clock optional | € 3,200

Lab12 – Greece
Lab12 DAC1 Reference | TDA1543 | USB, RCA,Toslink | Tube output stage. Balanced OPT version optional | $ 3,450

LampizatOr – Poland
Atlantic 2 TRP DAC | R2R | USB, BNC, RCA, AES/EBU | SET DHT output stage. Optional: Balanced, Tube based PSU, Preamp, DSD512 | € 6-9,000
Big 7 Mk2 DAC | R2R* | USB, BNC, RCA, AES/EBU | SET DHT output stage. Tube based PSU. DSD512. Optional: Balanced, Preamp, R2R PCM | € 8-11,000
Golden Gate 2 DAC | R2R
| USB, BNC, RCA, AES/EBU | DHT output stage, DHD rectifier. DSD512. Optional: Balanced, Preamp, *R2R PCM | € 15-20,000

LessLoss – Lithuania
Echo’s End | R2R | USB, RCA, BNC, AES/EBU | $ 5,342
Echo’s End Reference | R2R | USB, RCA, BNC, AES/EBU | $ 19,628
Echo’s End Reference Supreme Edition | R2R | USB, RCA, BNC, AES/EBU | 2-box system | $ 34,000

Light Harmonic
Da Vinci DAC MKII | R2R | USB, RCA, AES/EBU | Dual-DAC (PCM/DSD) | $ 40,000

LiTe Audio – China
DAC-72 | PCM1702 | RCA, Toslink | Tube output stage | $ 325

Metrum Acoustics – Netherlands
Flint | R2R | RCA, Toslink | NOS | € 490 (DAC ONE), € 690 (DAC TWO)
Amethyst | R2R | USB (or I2S), RCA (x2), Toslink | NOS, FPGA, DAC/HPA | € 1,200
Onyx | R2R | USB (or I2S), RCA, Toslink, AES/EBU | NOS, FPGA, SE/BAL output, Remote ctrl | € 2,400
Jade | R2R | USB (or I2S), RCA, Toslink, AES/EBU | NOS, FPGA, SE/BAL output, DAC/PRE, Remote ctrl | € 2,600
Pavane | R2R | USB (or I2S), BNC, RCA, Toslink, AES/EBU | NOS, FPGA, Dual mono, SE/BAL output, Remote ctrl | € 4,800
Adagio | R2R | USB (or I2S), BNC, RCA, Toslink, AES/EBU | NOS, FPGA, Dual mono, SE/BAL output, DAC/PRE, Remote ctrl | € 5,300

MHDT Laboratory – Taiwan
Canary | TDA1545A | USB, RCA, BNC, Toslink | NOS, no digital filtering, tube buffered output | $ 730
Atlantis | AD1862N | USB, RCA, BNC, Toslink | NOS, no digital filtering, tube buffered output | $ 845
Stockholm v.2 | PCM56P-J | USB, BNC, RCA, Toslink | NOS, no digital filtering, tube buffered output | $ 940
Istanbul | PCM61P-K | USB, BNC, RCA, Toslink | NOS, no digital filtering, tube buffered output | $ 1,015
Orchid | TDA1541A | USB, BNC, RCA, Toslink | NOS, no digital filtering, tube buffered output | $ 1,210
Pagoda | PCM1704 | USB, BNC, RCA, Toslink | NOS, no digital filtering, tube buffered output | $ 1,420 (Balanced $ 2,220)

Mojo Audio – USA
Mystique v2X DAC | AD1865N-K | USB | NOS | $ 2,000
Mystique EVO 21 DAC | AD1862 | USB, RCA (or BNC), AES | NOS, Modular design, SE/BAL output | $ 7,780-10,020 (Basic); $ 9,780-15,280 (B4B); $ 10,780-15,780 (Pro)

Musician Audio – China
Pegasus R2R DAC | R2R | USB, RCA, Toslink, AES, I2S | NOS/OS. PCM1536/DSD0124. RCA/XLR outputs | $ 1,100

MyST – Russia
DAC 1866D | AD1866 | USB, Mini-Coax, HDMI | NOS, DAC/HPA, Line-In | $ 470
PortaDAC 1862 | AD1862 | USB, Mini-Coax, Toslink, HDMI | NOS, AC/battery pwr | $ 870
DAC 1862OCU | AD1862 | USB, RCA, Toslink | NOS, DAC/HPA | $ 1,030

Phase Style Ltd – Ukraine
PhaSt DAC | AD1865 | USB, RCA, BNC, AES | Tube output stage. XLR optional. Tubes and caps customizable | € 900 - € 1,400

Pro-Ject Audio Systems – Austria
DAC Box S FL | TDA1543 | RCA, Toslink | NOS, no digital filtering | $ 250

Resolution Audio – USA
Cantata Music Center 3.0 | AD5791 | USB, Toslink x3, LAN, Flex x2 (SPDIF or analog) | DAC/CDP/Network Player/Preamp, SE+BAL output, Wifi remote app | € 10,150

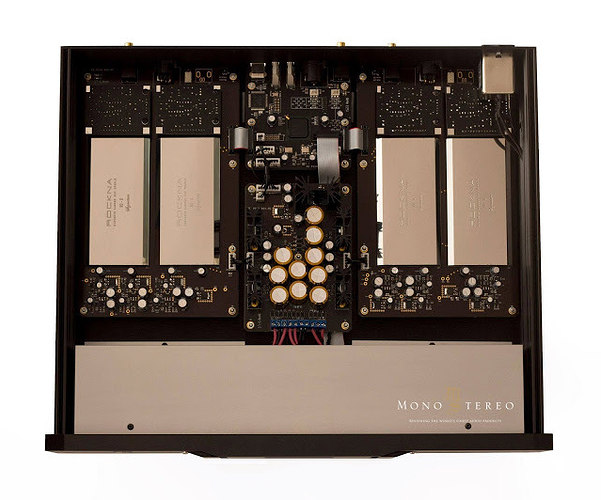

ROCKNA Audio – Romania
Wavelight | R2R | USB, RCA, AES/EBU, Toslink, I2S, analog | 25-bit ladder module. PRE/DAC | € 4,725
Wavedream Edition | R2R | USB, RCA, AES/EBU, I2S | 26-bit ladder module | € 7,200 (SE) / 9,600 (BAL)
Wavedream Signature | R2R | USB, RCA, AES/EBU, I2S | 27-bit ladder module | € 11,400 (SE) / 17,900 (BAL)

Schiit Audio – USA
Modi Multibit | AD5547 | USB, RCA, Toslink | $ 250
Bifrost | AD5781ARUZ | USB, RCA, Toslink | SE/BAL output | $ 700
Gungnir Multibit | AD5781BRUZ | USB, BNC, RCA, Toslink | SE/BAL output | $ 1,300
Yggdrasil | AD5791BRUZ | USB, BNC, RCA, Toslink, AES/EBU | Modular design. SE/BAL output | $ 2,450

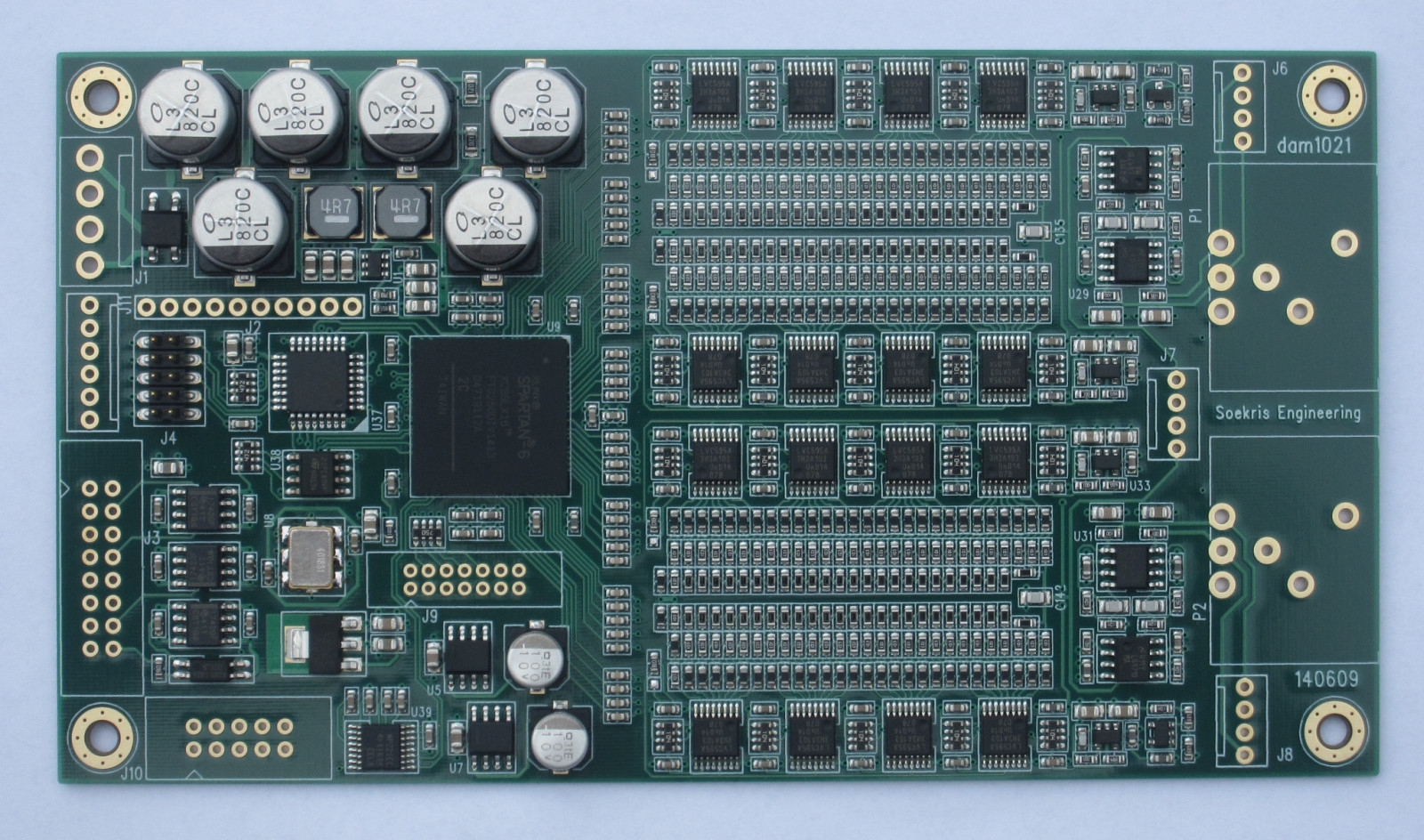

Soekris Engineering – Denmark
DAC1221 | R2R | details to be announced
DAC1421 | R2R | USB, RCA, Toslink | DAC/HPA, DSD | € 780
DAC2541 | R2R | USB, RCA, BNC, Toslink, AES | DAC/HPA. SE/BAL output | € 1150

Sonnet Digital Audio – Netherlands
Morpheus | R2R | USB (or I2S), RCA, Toslink, AES/EBU | NOS, Fully balanced, Volume control | € 3,500

Sparkler Audio – Japan
Model S512 “perceive” | TDA1543 | I2S | NOS. Optional USB/COAX/Toslink plug-in adaptors | $ 725

SW1X Audio Design - UK
DAC 1 | TDA1543 | RCA | NOS, Active I/V, Tube output stage + PSU, Various optional extras | £ 2,500 (Special)
DAC 2 | PCM56-K | RCA, optional USB | NOS, Active I/V, Tube output stage/PSU, Various optional extras | £ 2,800 (Standard), 3,850 (Special), 5,500 (Balanced), 12,000 (Signature)
DAC 3 | TDA1541 | RCA, optional USB | NOS, Active I/V, Tube output stage/PSU/Clock, Various optional extras | £ 4,800 (Standard), 8,500 (Special), 10,000 (Balanced), 25,000 (Signature)
DAC 4 | TDA1541 | RCA, optional I2S | NOS, Passive/Active I/V, DHT output stage/DHD PSU/tube clock, Various optional extras | £ 11,000 (Standard), 15,000 (Special)
DAC 5 | TDA1541 S1/S2 | RCA | NOS, Transformer decoupled DHT output stage/DHD PSU/tube clock, Various optional extras | £ 20,000 (Standard), 35,000 (Special), 90,000 (Signature)

Tento Engineering – Germany/Russia
Porta DAC2 | AD1866 | USB, RCA, Toslink, BT | DAC/HPA. Battery pwr. AptX | € 600

TeraDak Audio Electric Company – China
TDA1543 NOS DAC-V3.1D | TDA1543 | USB, RCA, Toslink | $ 230
TDA1543 NOS DAC-V4.1D | TDA1543 | USB, RCA, Toslink | Separate psu | $ 300
TDA1543 NOS DAC-V4.5 | TDA1543 | USB, RCA, Toslink | Separate psu | $ 405

Thivan Labs – Vietnam
Tube Music Processor X-GRAND | R2R | USB, RCA, BNC, Toslink, AES | R2R DSD 64-bit module. Tube output stage | £ 4.165

Thrax Audio – Bulgaria
Maximinus Mk2 | R2R | USB, RCA, Toslink, AES/EBU, Ethernet, 2x I2S optional | DAC/Streamer, Selectable reclocking/upsampling/filtering | € ?

Tidal Audio – Germany
Camira DMC | R2R | USB, RCA, BNC, AES/EBU (x2) | 32-bit, NOS, FGPA, true balanced ouput | € ?

Tobian Sound Systems – Switzerland
DAC T8 | AD1865 | USB, RCA, Toslink | NOS, tube output | € 10,900

Totaldac – France
d1-core DAC | 3V RCA and 6V XLR outputs | € 4,320
d1-single-mk2 DAC | 1x DAC/channel. 3V RCA outputs. Headphone output | € 6,400
d1-tube-mk2 DAC | 2x DAC/channel. Tube output stage. 1.4V RCA output | € 9,100
d1-six DAC | 3x DAC/channel. 2.5V RCA and 5V XLR outputs. Headphone output | € 12,400
d1-seven DAC | 3x DAC/channel. 3.2V RCA and 6.4V XLR outputs | € 17,450
d1-direct DAC | 3x DAC/channel. Direct 1.6V RCA outputs | € 17,450
d1-twelve-mk2 DAC | 3-box system. 6x DAC/channel. Direct 1.6V RCA outputs and buffered 3.2V RCA (6.4V XLR) outputs | € 29,900
General details… Inputs: USB, Toslink, RCA, AES/EBU \ Features: R2R. NOS. Class A discrete output stage (except d1-direct). External psu. Remote control (input/volume/phase/display/compensation) \ Optional: Server/streamer (except d1-single/tube). BNC instead of RCA. DSD (DoP). Bass boost. Active crossover. Grey lid and/or Alu front.
Prices: excl VAT out of Europe

Trinity Electronic Design – Germany
Trinity DAC | PCM1704-K | USB, RCA x2, Toslink | 8 chips/ch in parallel with proprietary LIANOTEC technology, XLR outputs | € ?

Veridian Utopia – Slovakia
DAC | AD1865 | SPDIF, AES/EBU | NOS. Optional: USB, Signal buffer, Remote R2R VC, Preamp | € 990 - € 1,490
Sirius DAC | AD1865 | SPDIF, AES/EBU | NOS. Balanced. Optional: USB, Signal buffer, Remote R2R VC, Preamp | € 1,290 - € 1,890

VinylSavor/Thomas Mayer – Germany
Differential D/A Converter | 24bit discrete R2R ladder | BNC, USB | Dual PCM/DSD DAC, PCM NOS R2R, exD Superclock+receiver+DAC boards, DHT tube output stage, 3-box solution | € 21,000

Wavelength Audio – USA
Brick N2 USB DAC| TDA1543N2 | USB | NOS | $ 2,000
Secant USB DAC | TDA1543N2 | USB | NOS. Tube output stage. Separate tube PSU | $ 5,000

Ypsilon Electronics – Greece
DAC 1000 | R2R | USB, RCA, BNC, Toslink, AES, I2S | PCM(R2R)+DSD(DS) | $ 24,500 (STD); $ 49,000 (SE)

Zanden Audio – Japan
Model 5000 Signature | TDA1541A | BNC, RCA, AES/EBU, I2S | Tube output stage. Separate psu | £ 17,000


https://hoved-fi.dk/viewtopic.php?f=17&t=2845#p51472

11 симпатий

Еще есть самодельный модуль R-2R

http://soekris.com/products/audio-products/dam1021.html + убер-тема

Все так, все так.

Потрясно все аппараты внутри выглядят.

ИМХО правильный тренд! :smile:

Прослушав много ЦАП-ов понял что не воспринимаю звук дельта-сигмы. Даже уровня Брикасти М1 и Дебюсси (хотя последняя есть некий гибрид технологий).

1 симпатия

Пост щедро оплачен :grin:
Rockna представила для новых ЦАП Wavedream DAC с дискретными модулями Rockna RD-1 и Wavedream DAC Signature с с дискретными модулями Rockna RD-0.
Теперь не Femtoclock, который уже у всех парней, а свой Femtovox clock!

RD-1 с 26-битной лестницей, а RD-0 с 27-битной. Ну и DSD 256.

1 симпатия

Отзывы и сравнения характера звучания Pavane http://hi-audio.ru/page/otzyvy-metrum-pavane.html

Как говорится…отзывы настоящие, но тщательно отобраны и одобрены дистрибьютором. :slight_smile:
Интересно, если я размещу там свой, его оставят или удалят? :wink:

2 симпатии

Не разместишь!
А мог сразу написать хороший отзыв, а не то, что ты там разгромил! Пулей бы попал.

Я заказную пастилу не пишу, мне западло и эти, как их…принципы душат, во! :slight_smile:
Как услышал, так и написал, звиняйте.

La Voce S2 is for those who want to eat cake without being explicitly reminded of flour, butter and sugar.

If you find Sabre-rattlers all much of a muchness, the Aqua unit could well be a better fit for your tastes, especially if your music tastes closely align with that of your average Pitchfork or Uncut reader: The Hold Steady, Autechre, David Bowie.

Короче, надо бы послушать!

DSC_2425 by yurivv69, on Flickr

2 симпатии

Старая?

На MSB, видимо да, старая, совсем не играет. :confounded: ШУТКА. :grin:

1 симпатия

Но я блин просто охреневаю от уровня разрешения во всех смыслах усилителей Naim 40-летней давности. :open_mouth:

2 симпатии

Ну как, чья лестница выше?

Ну нет, не дождетесь.

Вам прямо сразу писю покажи, а где стриптиз?

4 симпатии

Переживаю, вдруг ты после прослушки топов потеряешь веру в цифру :grin:

Невозможно потерять то, чего нет и не было. :smile:
